Multi-I/O Stick System

SKU: 6954 Categories: , Tags: ,

Description

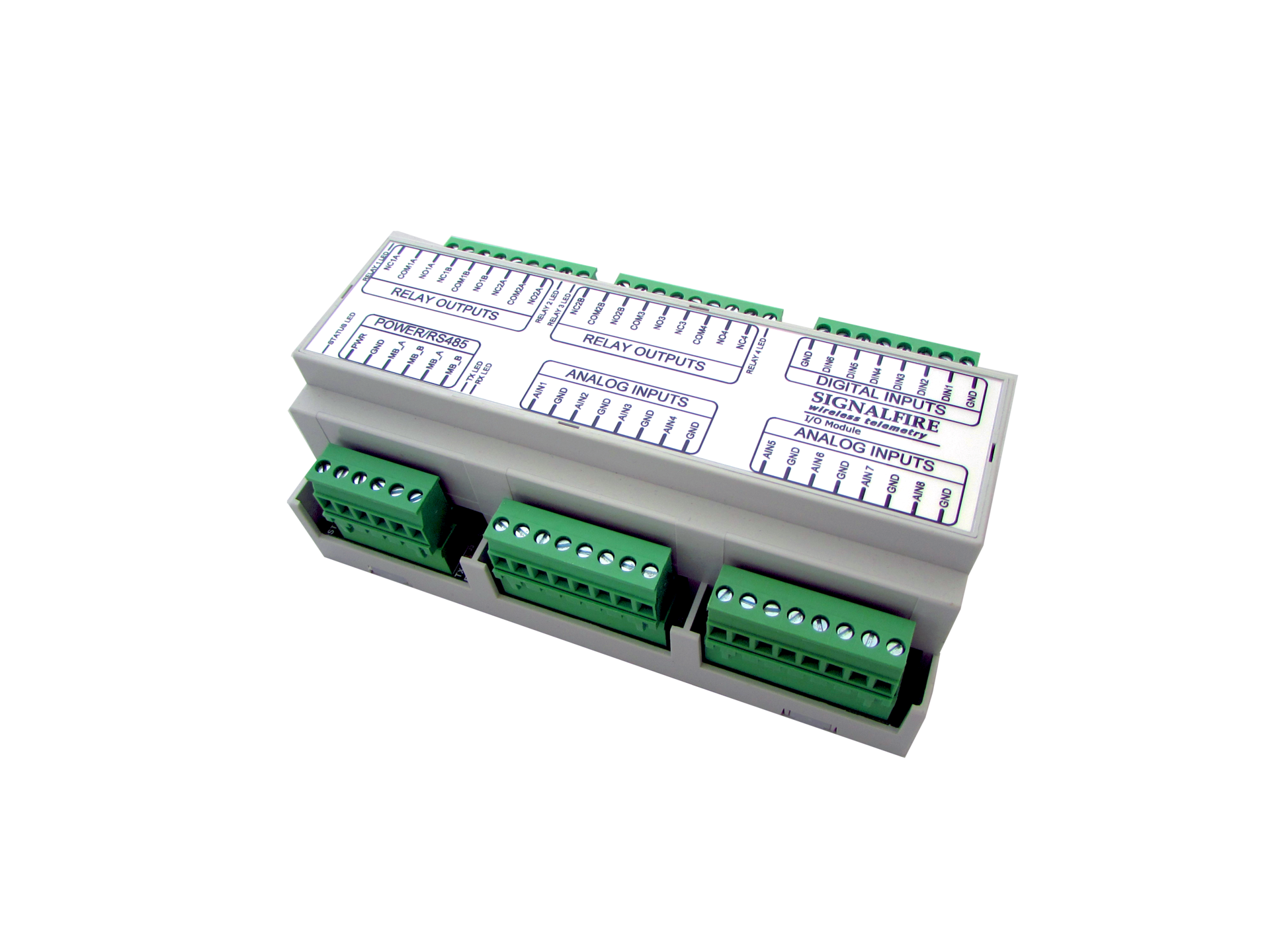

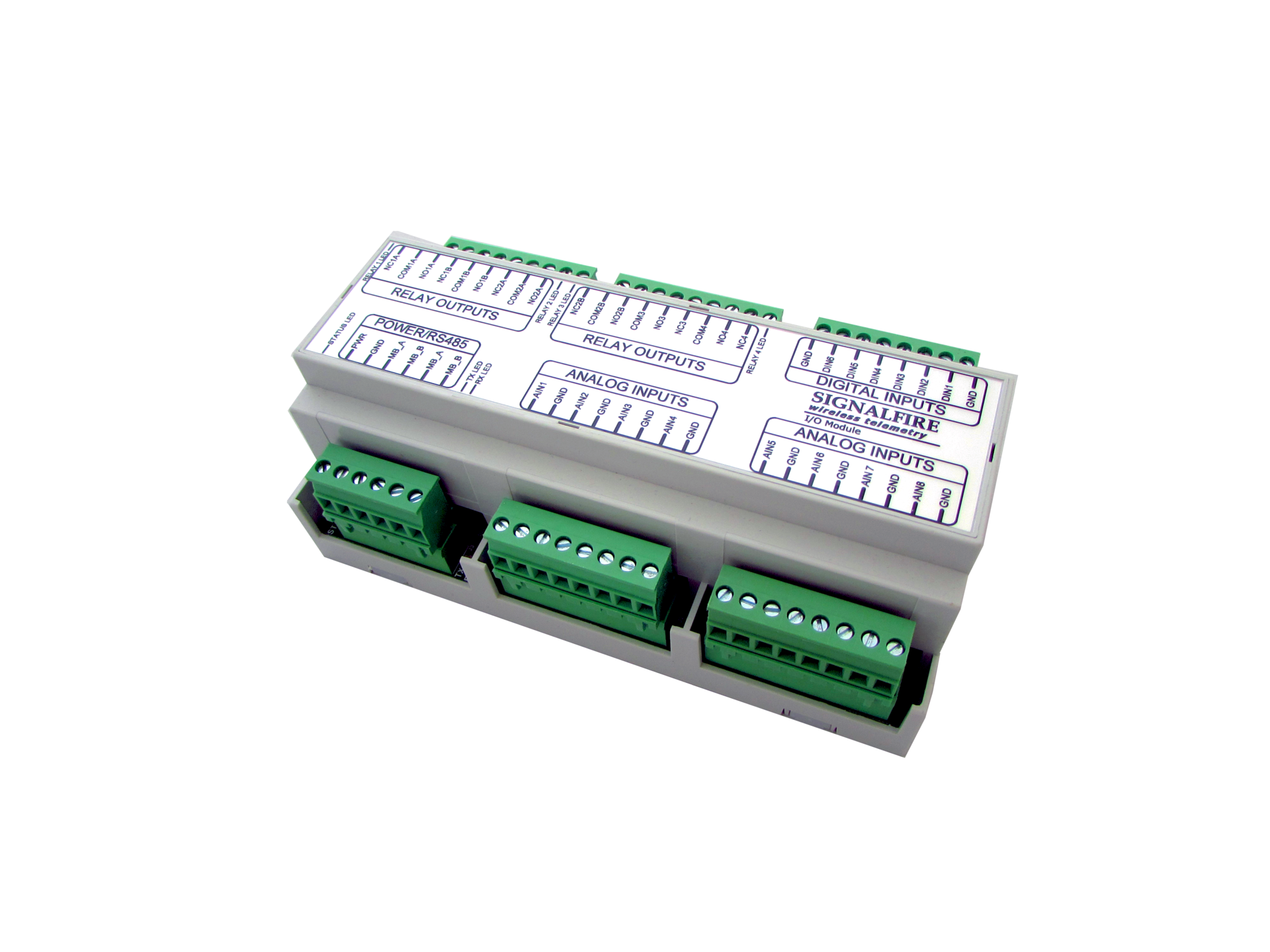

The SignalFire Multi-I/O Stick System is designed to connect to a Modbus Stick and provide sophisticated wireless I/O control. The Multi-I/O Stick System is ideal for separator, heater treater, plunger lift and other applications. The Multi I/O Stick Syatem has 8 analog inputs and 6 digital inputs that report on state change and totalizing.  Features also include 2 single pole and 2 double pole relays with direct control as well as programmable pulse control. It also provides an ultra-low operation and an easy to use table driven configuration interface.

Features of the Multi-I/O Stick System

  • 8 Analog inputs.  4-20mA / 1-5V switch selectable (16 bit) with units of measure scaling and threshold monitoring
  • 6 Digital Inputs with report on state change and totalizing
  • 2 Single Pole and 2 Double Pole relays with direct and programmable pulse control
  • Up to 8 units may be daisy chained
  • 6-36VDC input voltage rage.
  • Ultra-low power operation
  • Class 1 Division 2, Temp Code T4, Groups C&D.  Certified to CSA C22.2 No. 213, UL 61010-1, and CSA C22.2#61010-1, Conforms to ANSI/ISA 12.12.01
  • Easy to use table driven configuration interface

Learn more about products from SignalFire available from BBP here.

To learn more about the product, click here.



Additional information

Industry

Chemical, Engineering, Food & Beverage, Oil & Gas, Pharmaceutical, Power Generation, Pulp & Paper, Refining, Water & Wastewater

Manufacturer

SignalFire
